Multi-Season Images

Objectives

In this example, we’re going to demonstrate how to work with images of same field taken in multiple seasons/time points. Due to the field management would vary in different growing stages, the difference between research plants and other objects (soil, weed) can sometimes be challenging to tell. It would make the segmentation easier if we can replicate plot coordinates learned from one image (s1.tif) to another image (s2.tif).

Obtain shapefiles from GRID

Run GRID normally on the image s1.tif. The output shapefiles allow us to replicate the plot coordinates to the next season (image).

Georeference the 2nd image by the 1st image

NOTE: This step can be skipped if the coordinate reference systsm (CRS) of two images matches well.

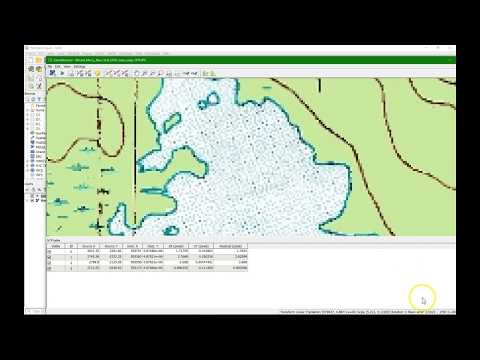

Before we work with s2.tif, we have to ensure that both s1.tif and s2.tif share the same CRS. As the coordinates recorded by GPS may sometimes have error from one image to another, it’s necessary to correct the georeference in QGIS.

Here’s a tutorial on YouTube:

Load shapefiles to replicate CRS

After we done georeferencing s2.tif, we are ready to replicate the segmetation from s1.tif to s2.tif. We will load s2.tif as the input image this time, and load s1.shp as the input shapefile.

Users are required to crop the area of interest (AOI) and define the pixel of interest (POI). After that, the segmentation will be carried out exactly the same way as one in s1.tif.

Inspect tabular data

# imports
import numpy as np
import pandas as pd
import os
import matplotlib.pyplot as plt
from scipy.stats import pearsonr
import h5py as h5

# load tabular data from s1.tif and s2.tif
dt_s1 = pd.read_csv("s1_data.csv").loc[:, ["var", "area_veg", "NDVI"]]
dt_s2 = pd.read_csv("s2_data.csv").loc[:, ["var", "area_veg", "NDVI"]]

# rename column names
dt_s1.columns = ["id", "canopy_s1", "ndvi_s1"]
dt_s2.columns = ["id", "canopy_s2", "ndvi_s2"]

# merge two seasons of data by their IDs
dt = pd.merge(dt_s1, dt_s2)
dt

	id	canopy_s1	ndvi_s1	canopy_s2	ndvi_s2
0	unnamed_0	6139	0.079541	10756	0.057954
1	unnamed_9	5289	0.064362	11499	0.050158
2	unnamed_18	2175	0.057072	5965	0.042233
3	unnamed_27	5958	0.060194	15209	0.040483
4	unnamed_36	3293	0.067456	8394	0.048621
...	...	...	...	...	...
265	unnamed_233	7759	0.084310	10316	0.099573
266	unnamed_242	6455	0.050348	9391	0.068676
267	unnamed_251	4714	0.043048	10661	0.032655
268	unnamed_260	4696	0.045965	9780	0.044229
269	unnamed_269	6703	0.079980	11354	0.061780

270 rows × 5 columns

Compute the correlation of NDVI between seasons

r2 = pearsonr(dt.ndvi_s1, dt.ndvi_s2)[0] ** 2
plt.title("Correlation r2 of NDVI = %.3f" % r2)
plt.xlabel("NDVI (season 1)")
plt.ylabel("NDVI (season 2)")
plt.scatter(dt.ndvi_s1, dt.ndvi_s2)

<matplotlib.collections.PathCollection at 0x7fefa8aa5550>

Compute the correlation of canopy areas between seasons

r2 = pearsonr(dt.canopy_s1, dt.canopy_s2)[0] ** 2
plt.title("Correlation r2 of canopy areas = %.3f" % r2)
plt.xlabel("Canopy area (season 1)")
plt.ylabel("Canopy area (season 2)")
plt.scatter(dt.canopy_s1, dt.canopy_s2)

<matplotlib.collections.PathCollection at 0x7fefa8e15610>

Select elite lines

We can select elite lines by ranking their change of canopy areas

# use "growth rate" to represent their performance
dt.loc[:, "growth_rate"] = (dt.canopy_s2 - dt.canopy_s1) / dt.canopy_s1

# plot the performance in a histogram
plt.xlabel("Growth rate (100%)")
plt.ylabel("Count")
_ = plt.hist(dt.growth_rate.values)

# we select lines with growth rate greater than 1
cutoff = 1
dt.loc[dt.growth_rate >= cutoff, "isElite"] = True
dt.loc[dt.growth_rate < cutoff, "isElite"] = False

# then we can replot the scatter plot by coloring the elite lines
plt.scatter(x=dt.canopy_s1,
            y=dt.canopy_s2,
            label="non-elite")
plt.scatter(x=dt[dt.isElite].canopy_s1,
            y=dt[dt.isElite].canopy_s2,
            label="elite")
plt.xlabel("Canopy area (season 1)")
plt.ylabel("Canopy area (season 2)")
plt.legend()

<matplotlib.legend.Legend at 0x7fef58a0c290>

# rank their performance
dt.sort_values(by="growth_rate", ascending=False, inplace=True)
dt

	id	canopy_s1	ndvi_s1	canopy_s2	ndvi_s2	growth_rate	isElite
6	unnamed_54	2044	0.064161	6793	0.044786	2.323386	True
63	unnamed_29	2274	0.116536	6812	0.094472	1.995602	True
105	unnamed_138	2498	0.104650	7121	0.113467	1.850681	True
253	unnamed_125	2988	0.070304	8435	0.069946	1.822959	True
256	unnamed_152	3094	0.078514	8665	0.060872	1.800582	True
...	...	...	...	...	...	...	...
170	unnamed_185	7543	0.124144	9593	0.149356	0.271775	False
87	unnamed_245	7795	0.093975	9883	0.123432	0.267864	False
26	unnamed_234	8109	0.087209	10260	0.107430	0.265261	False
172	unnamed_203	7375	0.113576	9316	0.146696	0.263186	False
18	unnamed_162	8168	0.103522	9540	0.136832	0.167973	False

270 rows × 7 columns

# extract the top-3 IDs
id_elite = dt[:3].id.values
id_elite

array(['unnamed_54', 'unnamed_29', 'unnamed_138'], dtype=object)

Insepct the elite lines

# define a function that can extract specific items from h5 files
# in the h5 file, <ID name> + "_raw" stands for a image without removing noise and shaded areas
# it allows us to better inspect the image

def extract_imgs_from_h5(filename, ids):
    ls_imgs = []
    with h5.File(filename, "r") as f:
        for id in ids:
            img = f[id + "_raw"][:]
            ls_imgs += [np.swapaxes(img, 0, 1)] # use np.swapaxes() to rotate image by 90°
    return ls_imgs

# extract images of elite lines from two seasons
imgs_s1 = extract_imgs_from_h5("s1.h5", id_elite)
imgs_s2 = extract_imgs_from_h5("s2.h5", id_elite)

# plot the images
fig, axes = plt.subplots(2, 3, figsize=(20, 10))
plt.subplots_adjust(hspace=0, bottom=0, top=.35)
for i in range(3):
    axes[0, i].imshow(imgs_s1[i])
    axes[0, i].set_title(id_elite[i] + (" (season 1)"))
    axes[1, i].imshow(imgs_s2[i])
    axes[1, i].set_title(id_elite[i] + (" (season 2)"))
